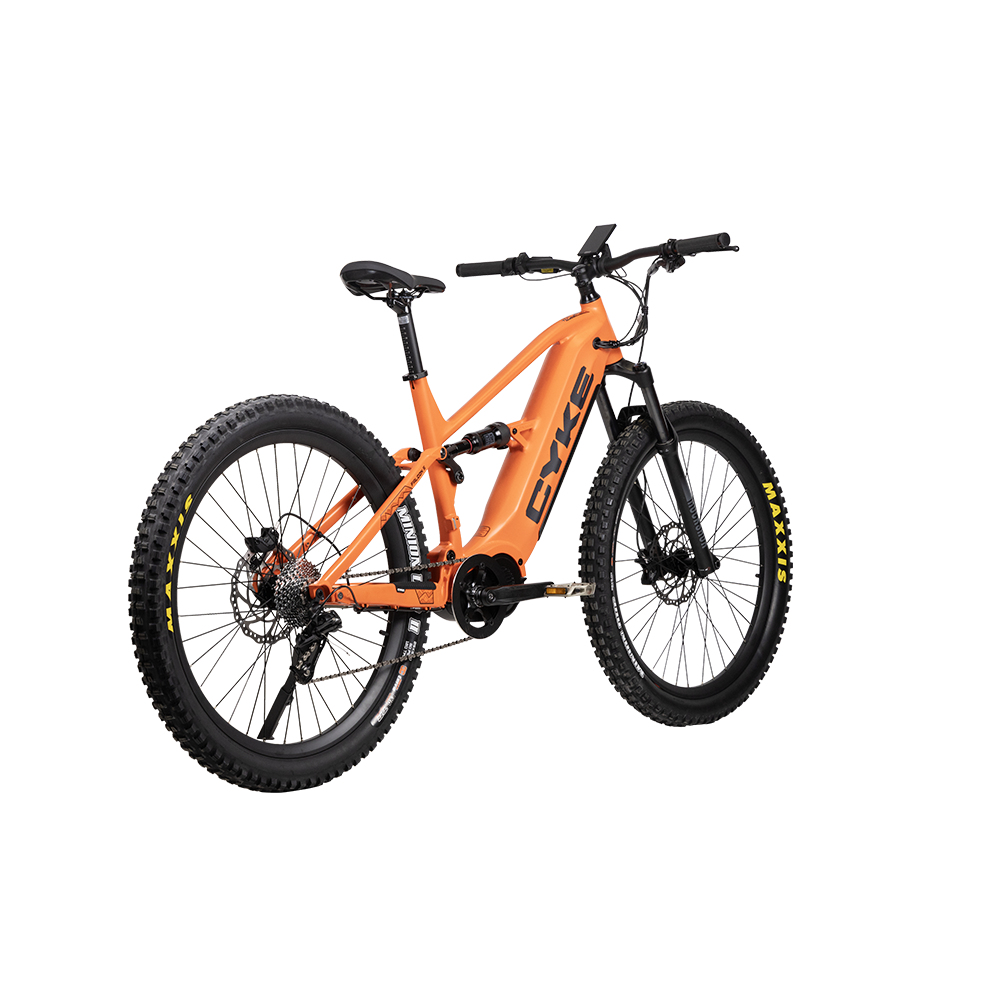

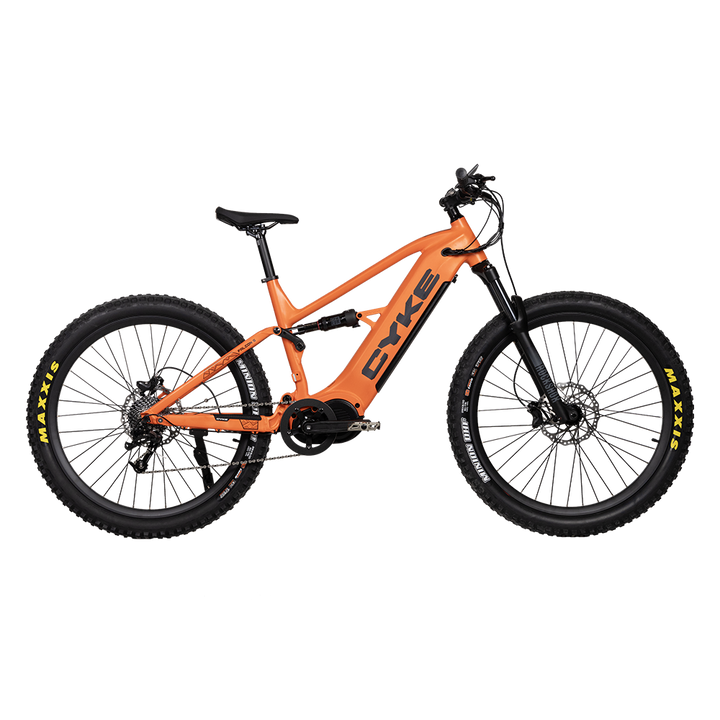

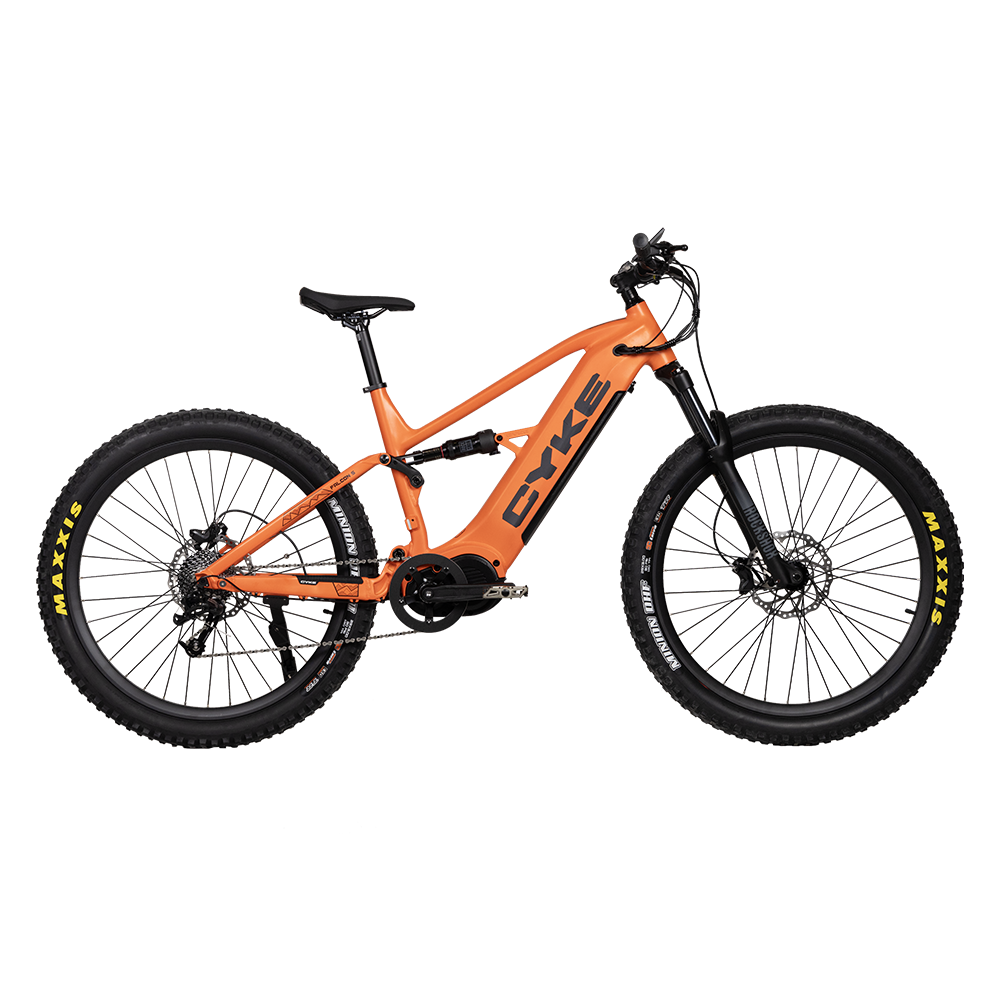

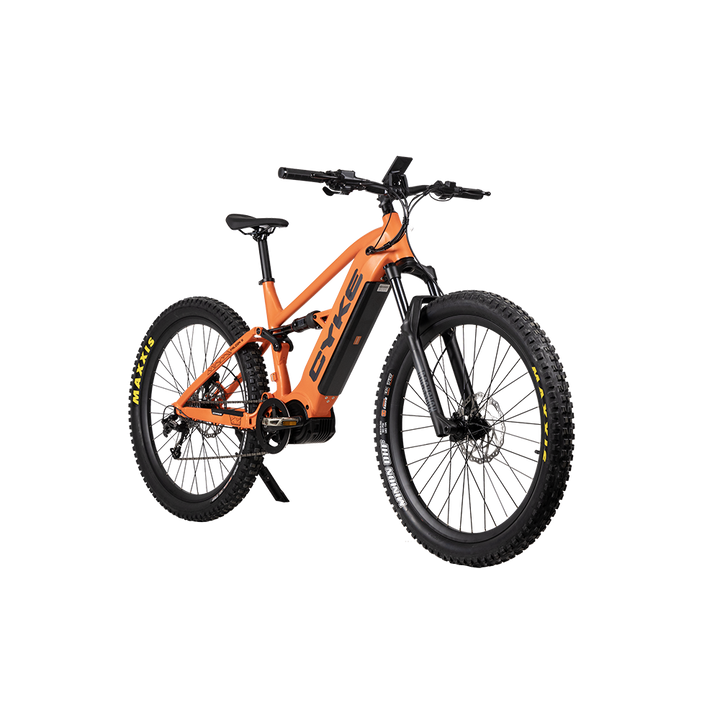

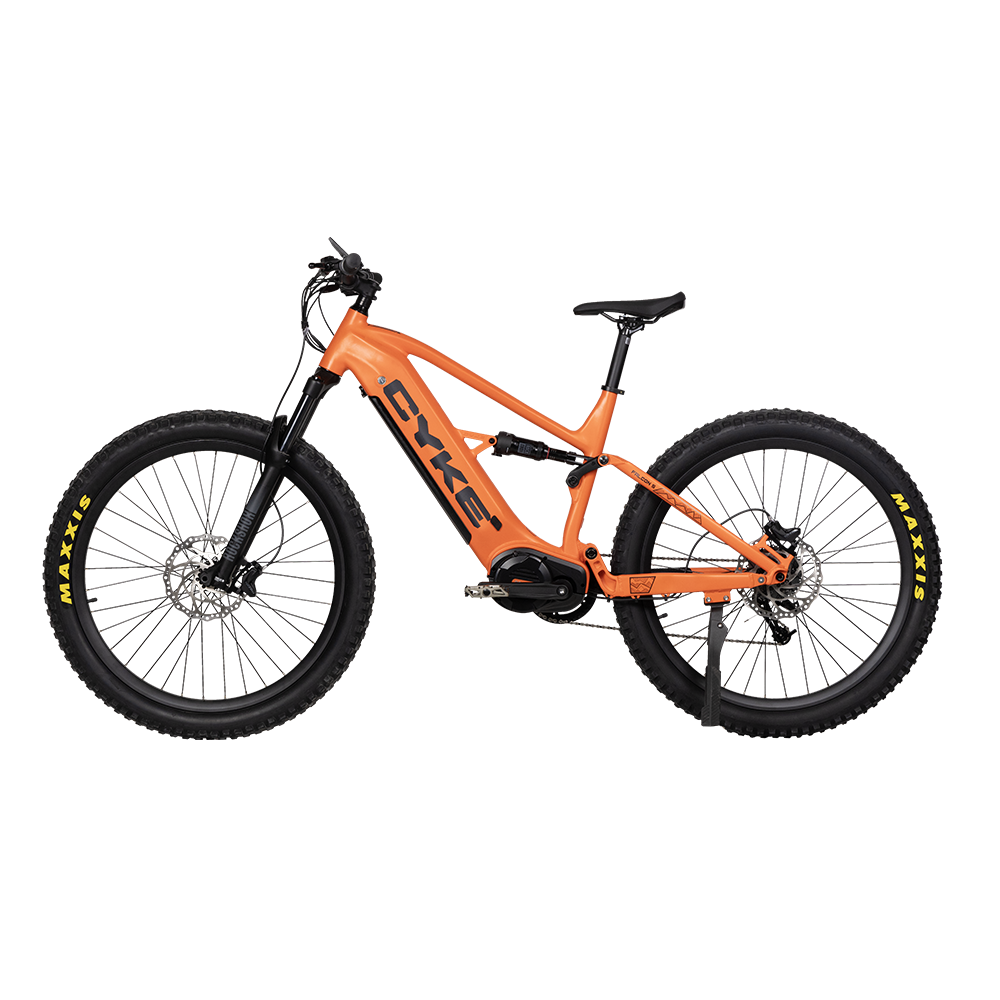

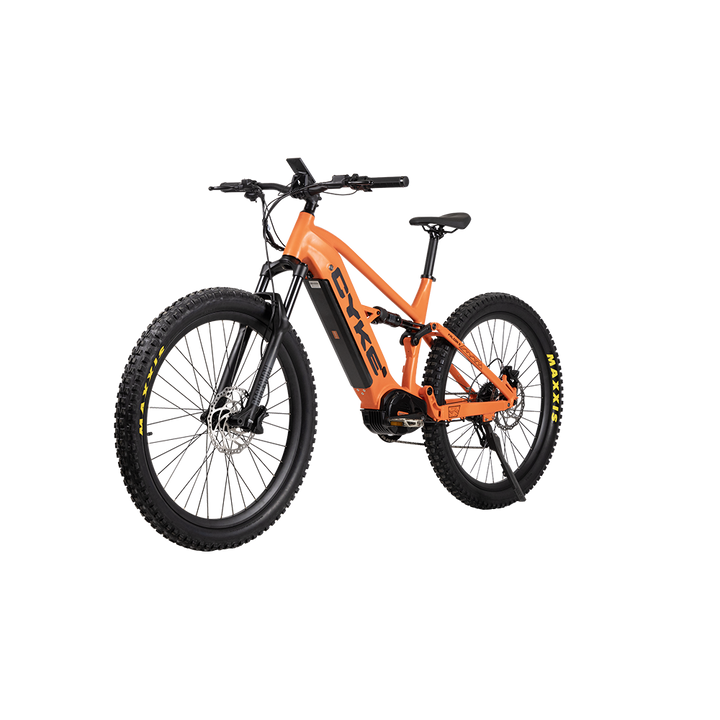

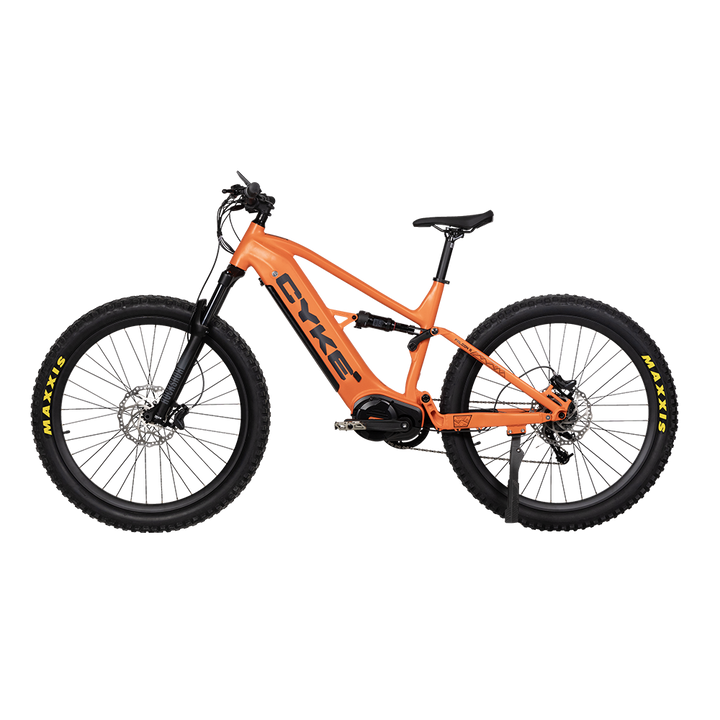

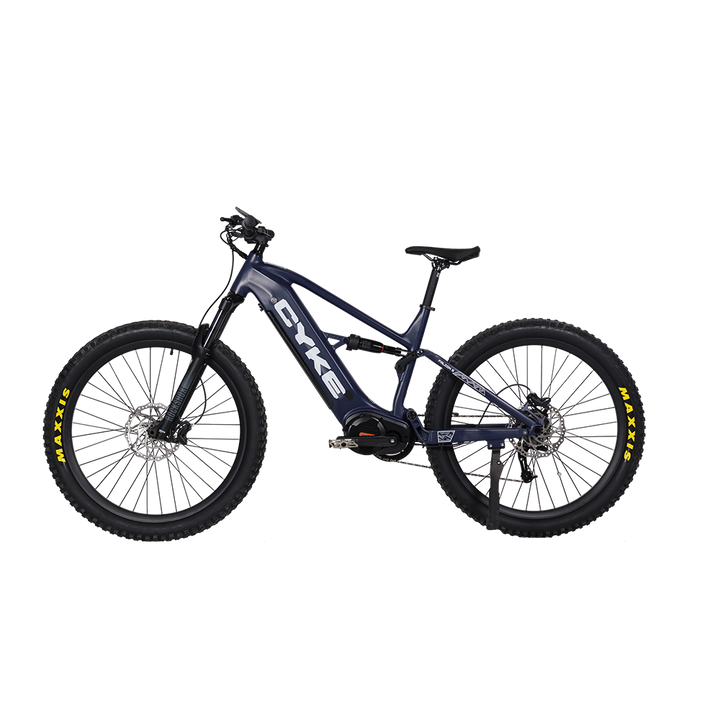

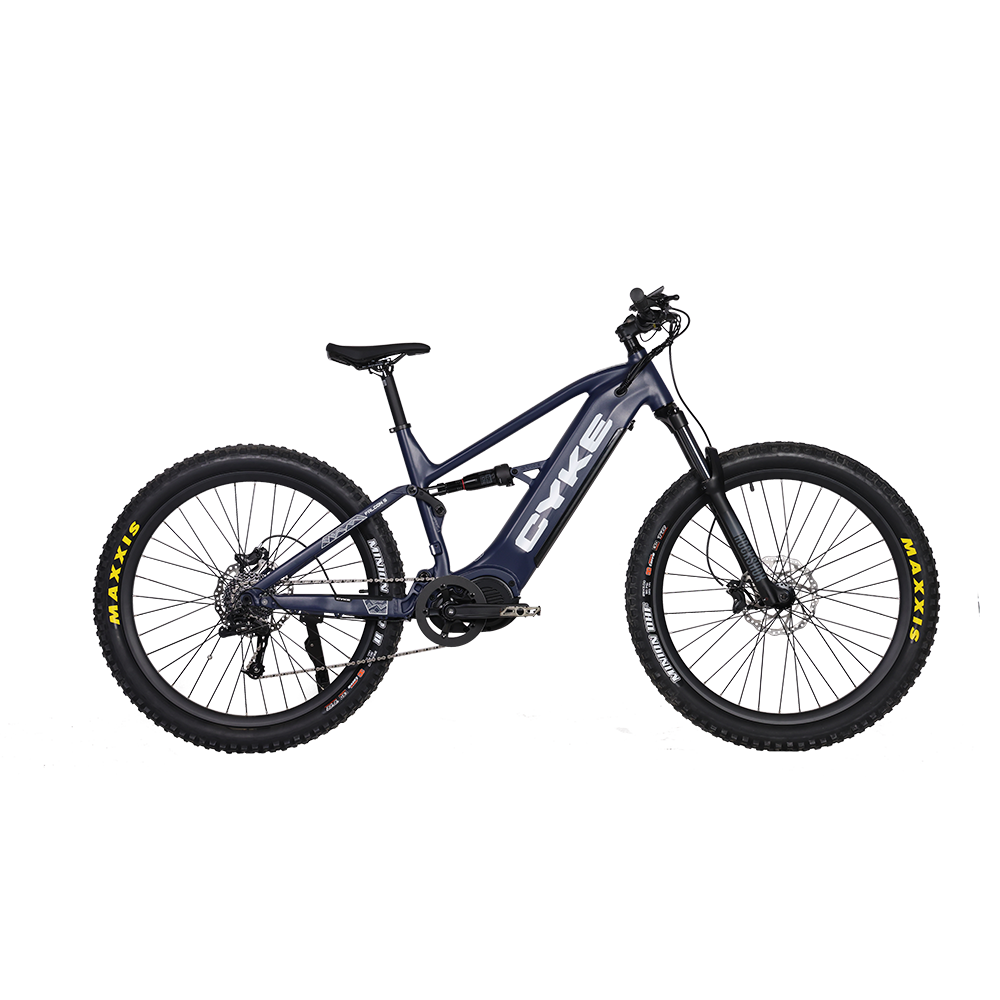

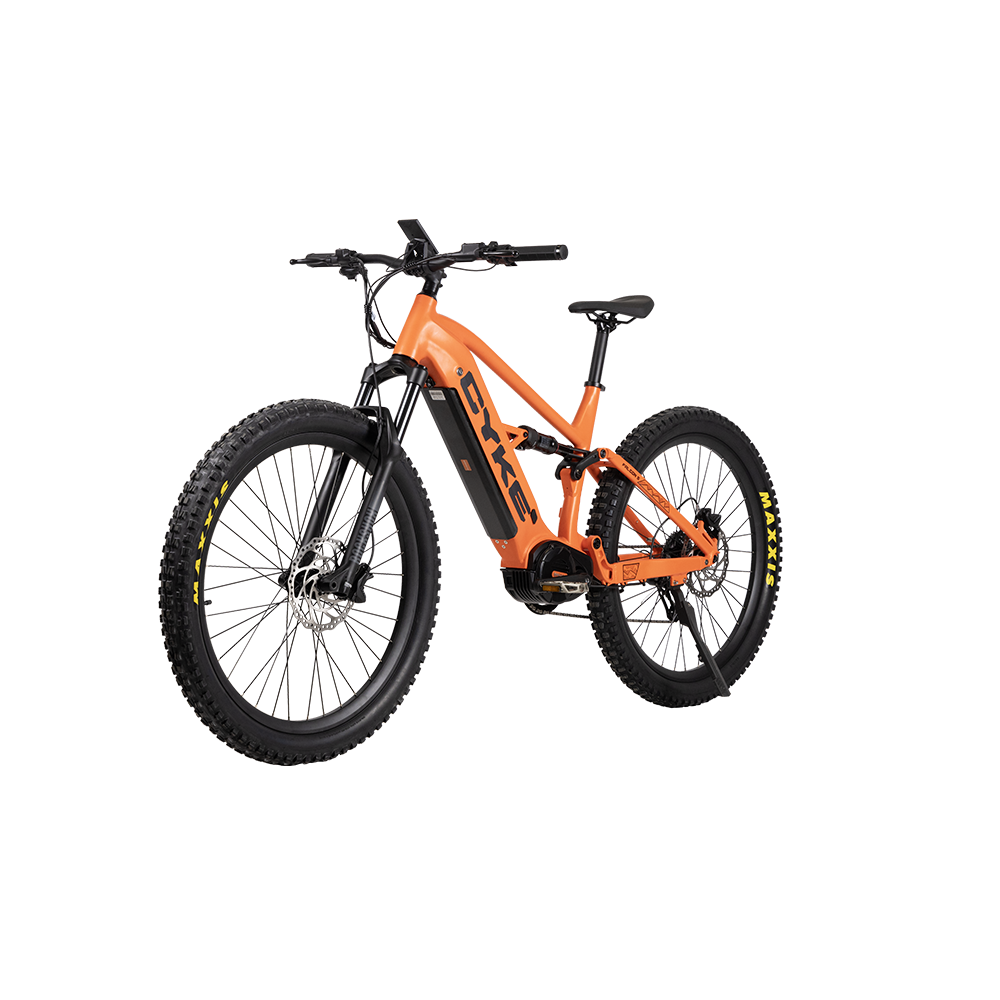

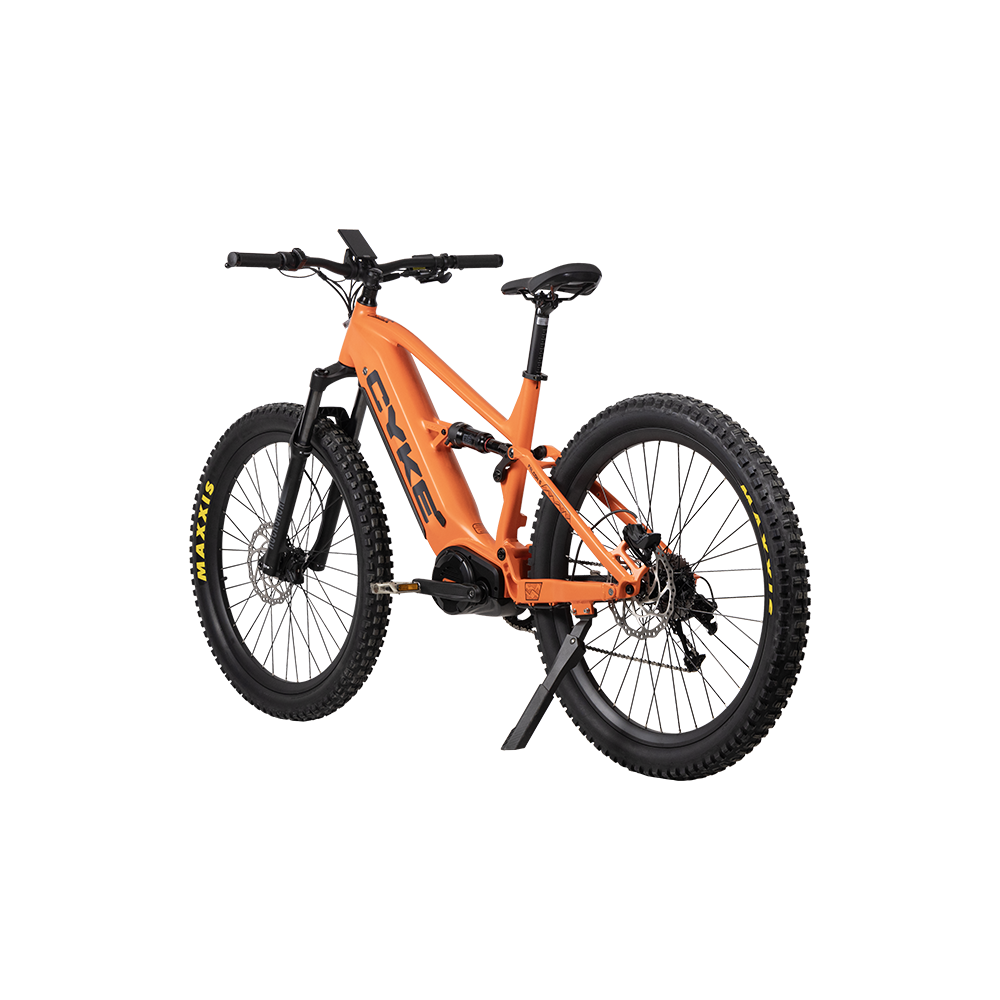

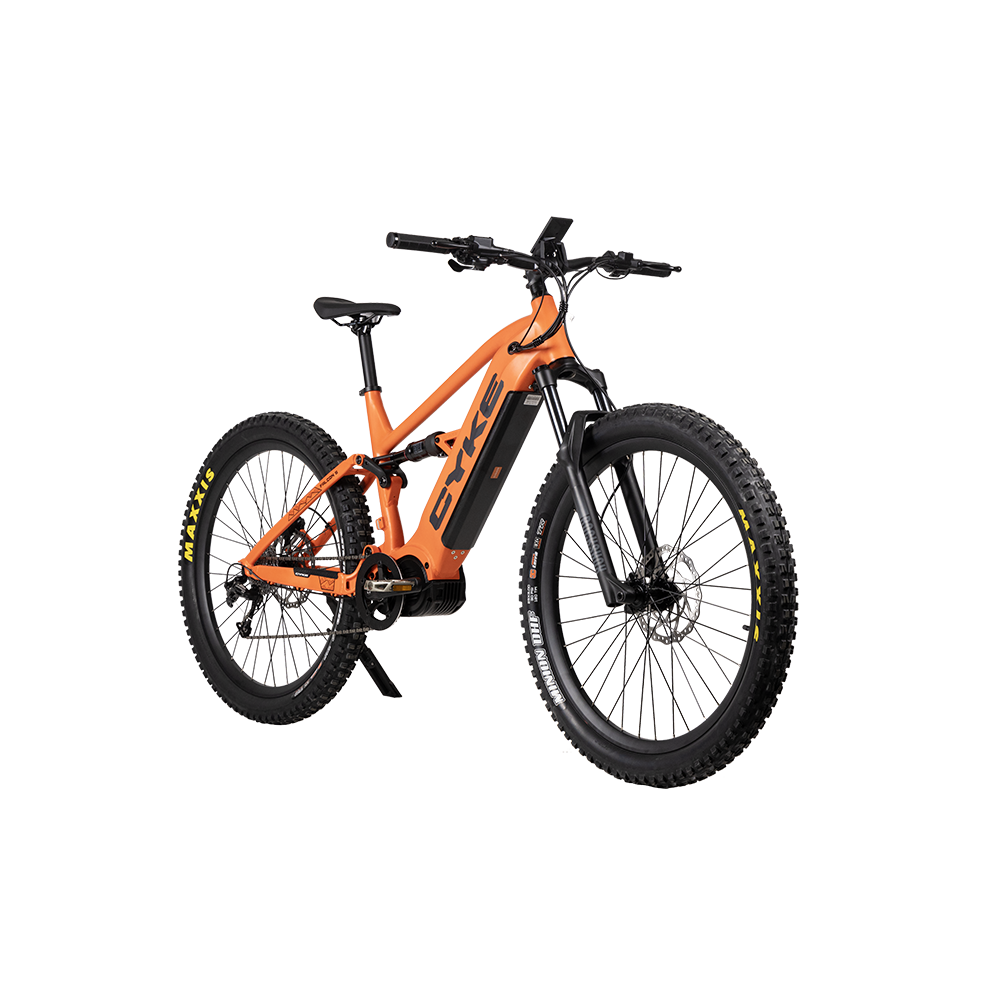

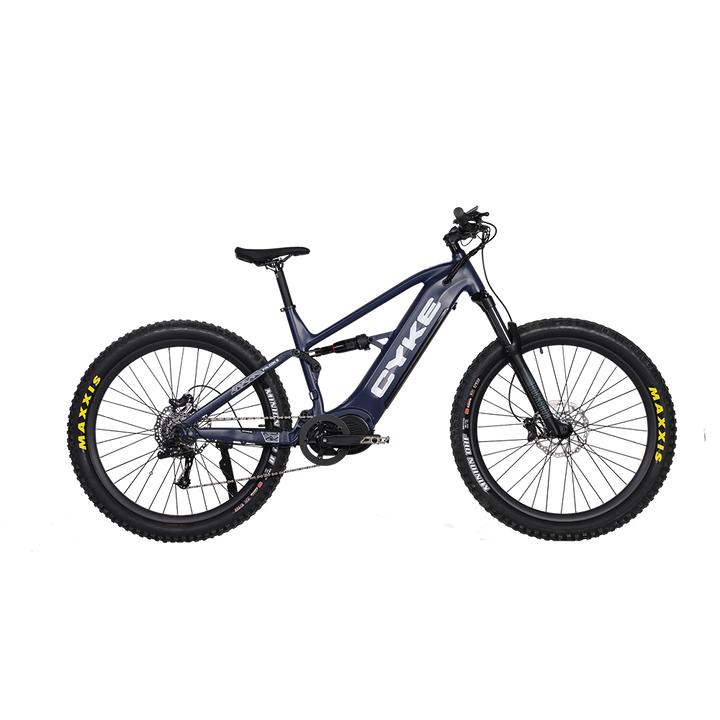

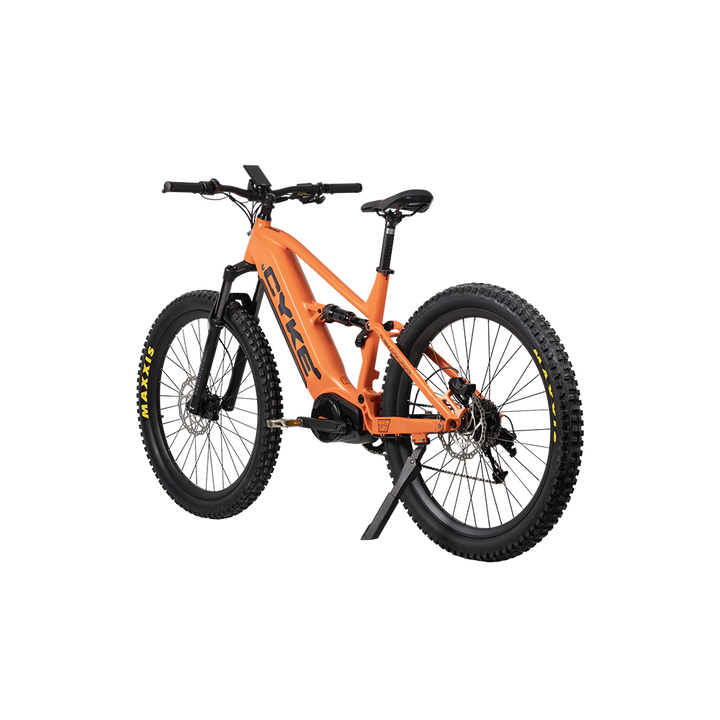

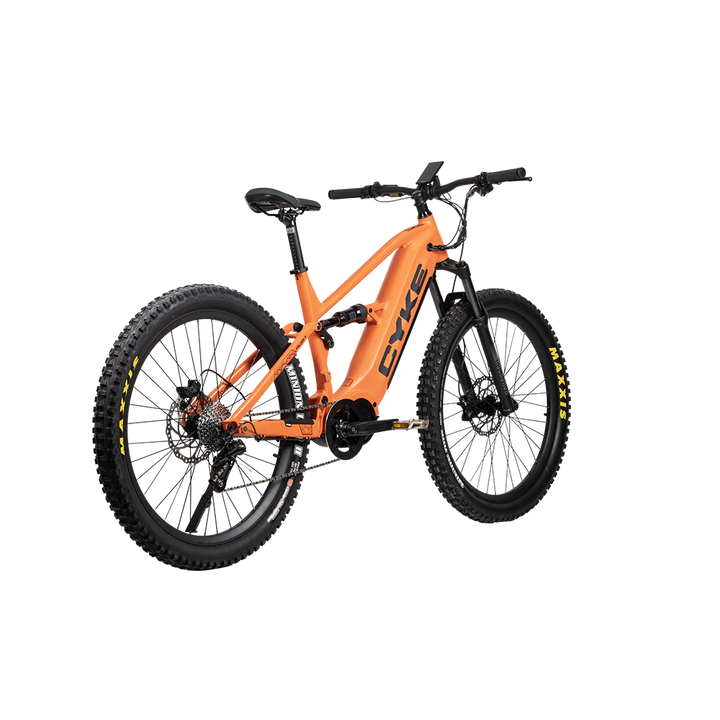

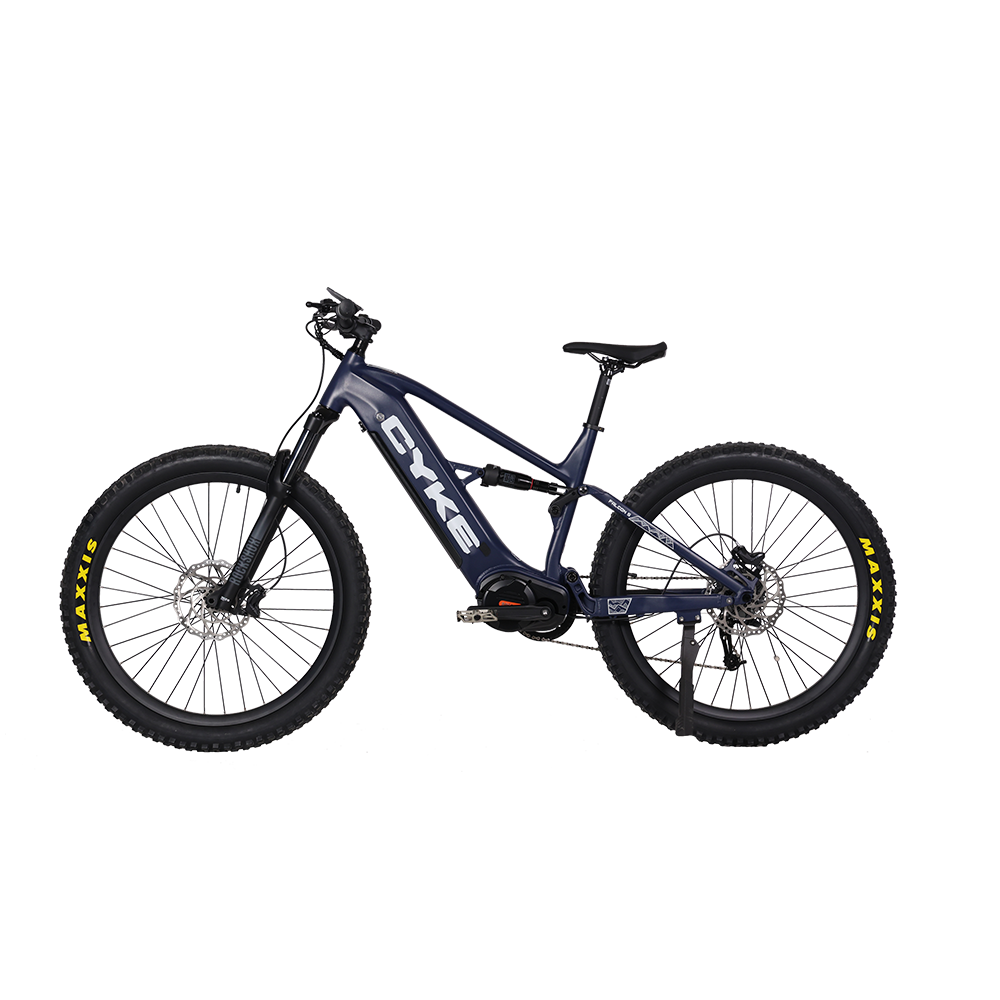

Falcon S eMTB Review
Full Suspension System
The Falcon S features a 150mm travel RST front fork and a RockShox air spring rear shock, delivering exceptional comfort and enhanced handling. This full suspension system offers superior protection for components and excels in efficiency on rough terrain, making it ideal for diverse riding conditions and challenging trails.
1000W BAFANG Mid-Drive Motor
Engineered for ultimate performance and excitement, the Falcon S elevates your riding experience to new heights. With a peak speed of 28mph, its powerful 1000W BAFANG mid-drive motor effortlessly tackles any terrain, letting you feel the thrill of the ride as you explore the great outdoors.
65-Mile Range
The Falcon S is equipped with a 48V/20Ah, 960Wh lithium-ion battery featuring LG 21700 cells, offering up to 65 miles of range on a single charge. Enhanced with a customized battery management system, it optimizes discharge current for improved performance and reliability.
TEKTRO Brake System
The Falcon S is equipped with TEKTRO HD-E730 hydraulic disc brakes, featuring a 4-piston caliper and 3T 203x2mm rotors. This braking system delivers reliable, powerful stopping performance, complemented by a power cut-off sensor for enhanced safety, ensuring precise control on steep and rugged terrain.
Torque Sensor
The Falcon S features a highly responsive torque sensor that adjusts motor output according to your pedaling force. This ensures smooth, natural acceleration, optimizing both efficiency and control, making it ideal for tackling challenging trails.
SRAM 9-Speed Gear System
The SRAM 9-speed gear system on the Falcon S features an SL-X5 shifter, RD-X5 derailleur, and CS-PG-950 cassette. With EXACT ACTUATION™ technology, it guarantees precise and effortless shifting across various terrains, providing smooth transitions for a more efficient and enjoyable ride.
Robust Frame
The Falcon S is built with an aluminum alloy frame, utilizing Italian flat welding, hydraulic forming, and baking varnish for superior durability. The integrated welding and grinding processes enhance its strength while maintaining sleek aesthetics, offering a long-lasting and stylish design.

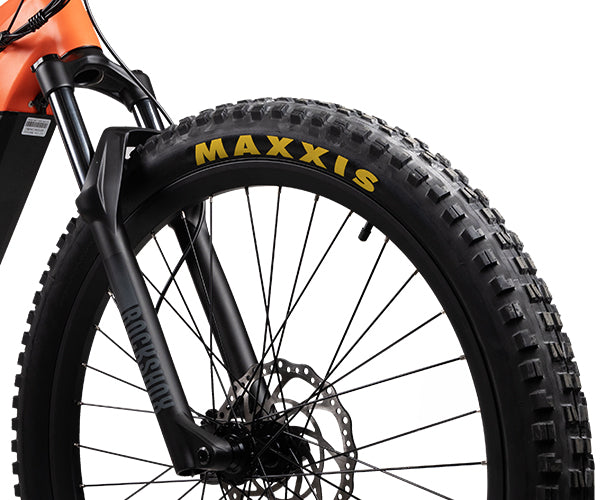

29x3" MTB Tires
Ride with confidence on 29x3" MTB tires that deliver exceptional shock absorption and stability on uneven surfaces. Offering excellent grip and comfort, these tires are perfect for tackling rough terrains with ease and style.
CYKE APP
The Falcon S is equipped with a BAFANG display featuring an IP66-rated LCD screen and Bluetooth connectivity, seamlessly integrating with the CYKE App. Effortlessly monitor ride stats, customize settings, and personalize your experience for smarter and more efficient cycling adventures.
Specifications
E-bike System
| Battery | 48V/20Ah, 960Wh Lithium-ion battery with LG 21700 cells |
| Motor | BAFANG Mid-drive, 1000W rated power, 1100W peak power, 160 Nm of torque, based on CAN6.3 protocol |
| Range | 65 Miles (75kg load, flat road, Cassette set to the smallest gear, and PAS1 level of pedal assist). The actual range varies depending on the weather, load, road conditions, etc. |
| Display | LCD display with Bluetooth, 4" TFT color screen, IP66 |
| Charger | Input: 100-240V AC, 2.0A; Output: 54.6V DC, 3.0A. UL Listed |
| Charging Time | Approx. 6-8 hours |
| Sensor | Torque sensor |
| Max Speed | 28 MPH both in pedal-assist and throttle modes |
| Pedal Assist Modes | 5 Levels |
Frameset
| Frame | Aluminum alloy, 17"/19" Size, 150mm travel |
| Fork | ROCKSHOX FS RCNS RL, 150mm travel, pneumatic bumper, hydraulic lockout |
| Shock | ROCKSHOX RS-DELUXE SELECT-C1, 190mmx45mm, iDebonAir+ air spring, Maxima Plush dynamic suspension lubricant |
Wheels
| Rim | Aluminum ring, 12G 36H AV, 634*41mm |
| Front Tire | Maxxis Minion DHF, 29x3.0" |
| Rear Tire | Maxxis Minion DHR II, 29x3.0" |
| Front Hub | Aluminum alloy, disc brake, 12G 36H, ID15*110mm |
| Rear Hub | Aluminum alloy, disc brake, 12G 36H, ID12*148mm |
| Spoke | Black stainless, 12G, 267mm |
Drivetrain
| Shifter | SRAM SL-X5, 9 speed, optimized for EXACT ACTUATION™ | Rear Derailleur | SRAM RD-X5, 9 speed, EXACT ACTUATION™ | Cassette | SRAM CS-PG-950, 9 speed |
| Crank arm | BAFANG 170mm length |
| Chainring | BAFANG MM G510, 40T |
| Chain | KMC E10S for e-bikes | Pedal | Aluminum alloy |
Components
| Saddle | VELO, boron steel, 160mm width | Seat Post | Aluminum alloy, Ø31.6*264mm | Stem | Bar bore: Ø31.8mm; Clamp I.D.: Ø28.6mm | Handlebar | Flat Bar, Aluminum Alloy Ø31.8mm, Width 780mm |
| Grips | VELO, trail grip |
| Brakes | TEKTRO HD-E730, 4-piston caliper, hydraulic disc, with power cut-off sensor |
| Brake rotor | TEKTRO HD-E730, 3T, 203x2mm |
| Kickstand | Side Kickstand |
Weight
| Weight Limit | 300 lbs |
| Net Weight | 66 lbs |
| Gross Weight | 100.3 lbs |
Size
| Bike Size | 82.84 x 30.9 x 45.79 in |
| Box Dimension | 68.7 x 34.1 x 11 in |
