External Air-Cooling System
The Grizzly Foldable eBike is equipped with an external air-cooled controller, offering exceptional heat dissipation and increased durability. This system boosts peak power performance by 20% and extends its lifespan by 30%, ensuring dependable operation and hassle-free maintenance with every ride.

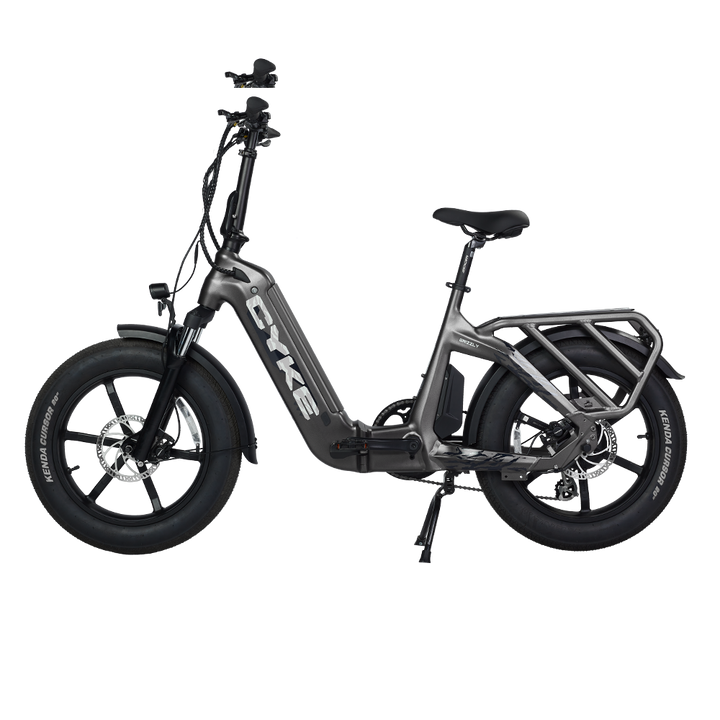

Foldable Design
The Grizzly is built with a reinforced foldable frame made from aerospace-grade 6061 aluminum alloy, supporting up to 450 lbs. This durable construction eliminates any weak points in the folding mechanism, ensuring strength and reliability. Its compact design allows for easy storage in small spaces or your car’s trunk, without taking up unnecessary room.
TEKTRO Brake System
The Grizzly is equipped with TEKTRO hydraulic disc brakes and 180mm rotors, delivering powerful and consistent braking performance. This ensures optimal safety and control, even when carrying heavy loads or navigating uneven terrain.
Shimano ALTUS 7-Speed
The Grizzly features a Shimano ALTUS 7-speed gear system, providing smooth and reliable shifting across various terrains. Whether you're tackling hills or cruising on flat roads, it ensures a comfortable and efficient ride.

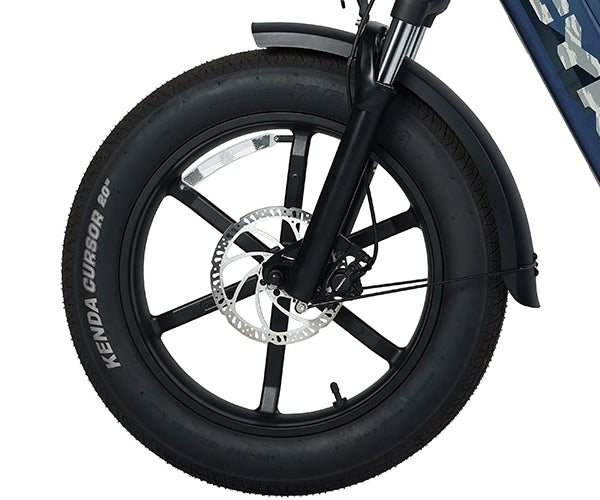

One-Piece Wheels
The Grizzly is equipped with lightweight, high-strength one-piece wheels that enhance stability and safety. This sturdy design ensures a smooth ride while preserving the eBike’s sleek, modern appearance, offering the perfect balance of durability and style on every journey.
BAFANG 750W Motor
The Grizzly’s BAFANG 750W brushless rear hub motor generates 85Nm of torque, delivering powerful acceleration and seamless performance. Designed to tackle various terrains with ease, it ensures a smooth, responsive ride for all your adventures.
100-Mile Range
The Grizzly is powered by a 48V/20Ah, 960Wh lithium-ion battery with LG cells, providing up to 100 miles of range. Its high capacity ensures dependable, long-distance performance, whether you're commuting or exploring new trails.
105 Adaptive Ride Modes
Featuring 105 adaptive ride modes, the Grizzly adjusts to your riding style and terrain. These modes provide energy efficiency and control, delivering a personalized and smooth riding experience for all conditions.
CYKE APP
The CYKE App keeps you connected with real-time data and navigation tools, while also linking you to a community of riders. Share routes, experiences, and enhance every outdoor adventure with seamless connectivity.
Specifications
E-bike System
| Battery | 48V/20Ah, 960Wh Lithium-ion battery with LG cells |
| Motor | BAFANG 750W rear hub motor, 85 Nm of torque |
| Range | Up to 100 miles (with a 75kg load in ECO mode). The actual range varies depending on the weather, load, road conditions, etc. |
| Display | 2.0" color matrix HMI display |
| Charger | Input: 100-240V AC, 2.0A; Output: 54.6V DC, 3.0A. UL Listed |
| Charging Time | Approx. 6-7 hours |
| Pedal Sensor | Cadence sensor |
| Max Speed | 28 MPH both in pedal-assist and throttle modes |
| Throttle | Thumb throttle |
| Pedal Assist Modes | 5 Levels |
Frameset
| Frame | Aluminum alloy |
| Fork | RST front suspension fork, 60mm travel |
Wheels
| Rim | Aluminum ring, 12G 36H AV, 422*85mm |
| Tire | KENDA 20x4.0" fat tires |
| Front Hub | 12G 36H |
Drivetrain
| Shifter | Shimano 7-speed | Rear Derailleur | SHIMANO ALTUS 7-speed | Freewheel | SHIMANO 7-speed |
| Crank Arm | 52ED, 165mm | Pedal | Aluminum alloy |
Components
| Saddle | Black nubuck leather | Seat Post | Forged Alloy, Ø30.4*350mm | Stem | Bar bore: Ø25.4mm; Clamp I.D.: Ø28.6mm | Handlebar | Flat Bar, Aluminum Alloy Ø25.4mm, Width 580mm |
| Grips | 140mm black grips |
| Brakes | TEKTRO hydraulic disc brake |
| Brake Rotor | 180mm brake rotor |
| Front Light | 40 LUX headlight |
| Tail Light | Brake light |
| Rear Rack | YES, integrated with the frame |
| Fenders | Front & rear fenders, Engineering Plastic |
| Kickstand | Center two-leg kickstand |
Weight
| Weight Limit | 450 lbs |
| Net Weight | 92.6 lbs |
| Gross Weight | 119.7 lbs |
Size
| Bike Size | 72.1 x 24.41 x 45.91-50.63 in | Bike Size (Folded) | 36 x 18.9 x 37 in |
| Box Dimension | 62.0 x 11.6 x 30.5 in |
