Step-Through Frame
The Lynx eBike is designed with a step-through frame, removing the front crossbar for effortless mounting and dismounting. Ideal for commuters, women, seniors, and riders with limited mobility, it offers maximum convenience. Constructed from aerospace-grade 6061 aluminum alloy, the Lynx supports up to 450 lbs, ensuring durability and strength.

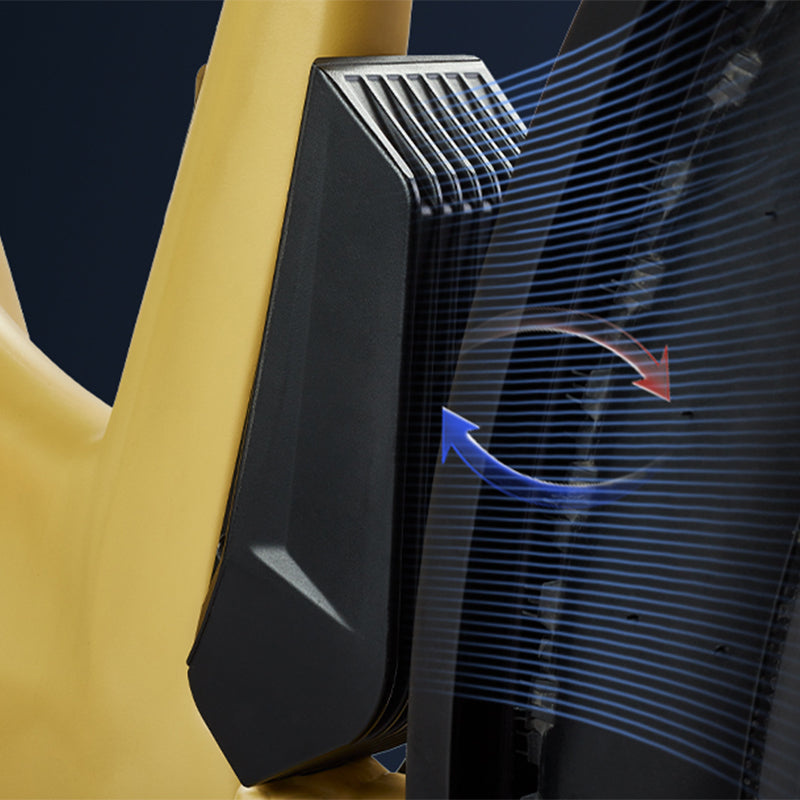

External Air-Cooling System
The Lynx commuter eBike is equipped with an external air-cooled controller, optimizing heat dissipation for improved durability. This advanced cooling system enhances peak power performance by 20% and extends lifespan by 30%, ensuring reliable daily commutes. With simplified maintenance, the Lynx stays ready for every ride.
TEKTRO Brake System
The Lynx is equipped with TEKTRO hydraulic disc brakes and 180mm rotors, ensuring powerful and consistent stopping performance in all conditions. Designed for smooth modulation and reduced maintenance, this braking system enhances safety and reliability, making it perfect for urban commuting.
RST Front Suspension
Equipped with an RST front suspension offering 80mm of travel, the Lynx effectively absorbs shocks from curbs and potholes for a smoother ride on city streets. This system minimizes rider strain and enhances comfort, making daily commutes more enjoyable.
BAFANG 750W Motor
The Lynx is equipped with a 48V/20Ah 960Wh LG battery featuring 21700 cells, delivering up to 100 miles of range on a single charge. Its high capacity makes it ideal for both daily commutes and weekend adventures.
100-Mile Range
The Lynx is powered by a high-capacity 48V/20Ah 960Wh LG battery with 21700 cells, offering up to 100 miles on a single charge. Whether you're commuting in the city or exploring off-road, this battery provides the range you need.
Shimano 8-Speed Drivetrain
The Lynx features a dependable Shimano 8-speed drivetrain, offering smooth and efficient gear shifts for city riding. Its straightforward design ensures durability and low maintenance, making it a perfect choice for daily commuters.
Ergonomic Design
The Lynx features adjustable handlebars and a comfortable seat, allowing for a personalized riding experience. Its ergonomic design encourages relaxed postures, enhancing comfort for both short commutes and longer rides.
CYKE APP
The CYKE App seamlessly connects to both iOS and Android devices, offering real-time data and navigation. It also fosters community engagement, allowing riders to share routes and elevate their overall cycling experience.
Specifications
E-bike System
| Battery | 48V/20Ah, 960Wh Lithium-ion battery with LG cells |
| Motor | BAFANG 750W rear hub motor, 85 Nm of torque |
| Range | Up to 100 miles (with a 75kg load in ECO mode). The actual range varies depending on the weather, load, road conditions, etc. |
| Display | 3.5" color matrix HMI display |
| Charger | Input: 100-240V AC, 2.0A; Output: 54.6V DC, 3.0A. UL Listed |
| Charging Time | Approx. 6-7 hours |
| Pedal Sensor | Cadence sensor |
| Max Speed | 28 MPH both in pedal-assist and throttle modes |
| Throttle | Thumb throttle |
| Pedal Assist Modes | 5 Levels |
Frameset
| Frame | Aluminum alloy |
| Fork | RST front suspension fork, 95mm travel |
Wheels
| Rim | Aluminum ring, 12G 36H AV, 585 x 85mm |
| Tire | KENDA 26x4.0" fat tires |
| Front Hub | 12G 36H |
| Spoke | Black stainless 12G, 250mm Front, 190mm Rear |
Drivetrain
| Shifter | Shimano 8-speed | Rear Derailleur | SHIMANO ALTUS 8-speed | Cassette | SHIMANO HYPERGLIDE |
| Crank Arm | 42ED, 170mm | Pedal | Aluminum alloy |
Components
| Saddle | Black nubuck leather | Seat Post | Forged Alloy, Ø30.4*350mm | Stem | Bar bore: Ø31.8mm; Clamp I.D.: Ø28.6mm | Handlebar | Flat Bar, Aluminum Alloy Ø31.8mm, Width 780mm |
| Grips | 140mm black grips |
| Brakes | TEKTRO hydraulic disc brake |
| Brake Rotor | 180mm brake rotor |
| Front Light | 40 LUX headlight |
| Tail Light | Brake light |
| Rear Rack | Aluminum Alloy, 55 lbs Load Capacity |
| Fenders | Front & rear fenders, Engineering Plastic |
| Kickstand | Side Kickstand |
Weight
| Weight Limit | 450 lbs |
| Net Weight | 94.8 lbs |
| Gross Weight | 130.3 lbs |
Size
| Bike Size | 80.31 x 28.35 x 45.14 in |
| Box Dimension | 67.0 x 12.6 x 34.9 in |
